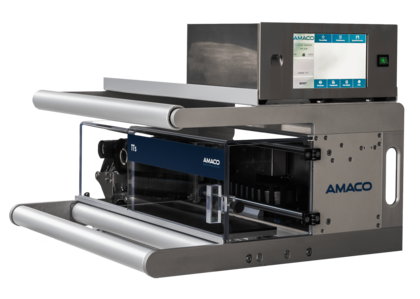

TTs_Externe Steuerung_Seitenansicht
Thermal Transfer Printer

TTs

Single pass traversing motion with external controller. Single or double row formats.

Contact us
Key Features

The AMACO Thermal Transfer Printer of the TTs series with an external controller is the result of continued development of one of the most flexible and precise thermal transfer direct printers towards perfection.

The dimensions of the enhanced & more stable print mechanical equipment are identical with those of its predecessor. As such, no difficulties arise in replacing your current printer with the newly developed, faster version offering many useful key features.



  • In-line or standalone solutions

  • Printing during stand still of the packaging machine

  • External controller

  • Intermittend printing

  • Single color high quality print

  • Up to 600 m ribbon capacity

  • 300 dpi

  • Near Edge printhead

  • 7“ touch-screen color display

  • Only one cable connection

  • Transfer ribbon saving feature

  • High print speed up to 500 mm/s | Back speed up to 700 mm/s

  • Display of remaining transfer ribbon for quick ribbon changes

  • Intuitive graphical user interface with icon buttons

  • WYSIWYG display with preview for verifying the layout

  • UDI compliant printing [GS1 | HIBC]

  • Connectivity [Ethernet | USB | ERP]

Flexibility in installation

Key Benefits

  • High speed digital coding

  • Effortless ribbon changeover

  • Efficient through ribbon save mode

  • Minimum cleaning & maintenance

  • Common interfaces for data exchange

  • Variety of optimized ribbons

  • Ideal for fixed and changing variable data on the job for a wide range of substrates

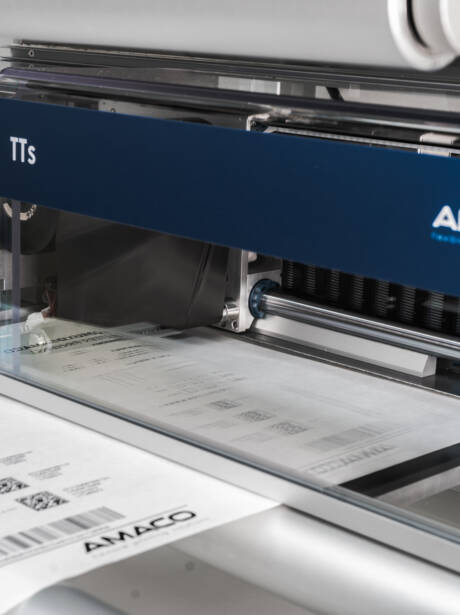

TTs Thermal Transfer Printer_Print
Technical Data
Print Length Max. 340 mm
Print Width Max. 128 mm
Print Resolution Max. 300 DPI
Print Speed Max. 50 - 500 mm / sec.
Back Speed Max. 50 - 700 mm /sec.
Top Web Max. 500 mm



Print Length Max. 447 mm
Print Width Max. 128 mm
Print Resolution Max. 300 DPI
Print Speed Max. 50 - 500 mm / sec.
Back Speed Max. 50 - 700 mm / sec.
Top Web Max. 600 mm



Print Length Max. 570 mm
Print Width Max. 128 mm
Print Resolution Max. 300 DPI
Print Speed Max. 50 - 500 mm / sec.
Back Speed Max. 50 - 700 mm / sec.
Top Web Max. 770 mm



Industries & Applications

Industries:

  • Medical Device Industry

  • Pharmaceutical Industry

  • Food Industry

  • Other Industries



Applications:

  • Medical Paper

  • Tyvek

  • Film

  • Foils

Thermal Transfer Printer

Consumables

Near Edge Ribbons | Available in various qualities, colors and dimensions

Thermal Transfer Ribbon

Choose from different compositions, colors and dimensions.
