Flexographic Printer

DV

Full surface in-line printing for fixed and limited variable information.

Contact us
Key Features

The AMACO Flexographic Printer of the DV series is the solution for high quality full surface in-line printing based on a proven technology.



  • Full surface high-quality in-line printing directly on the top web material

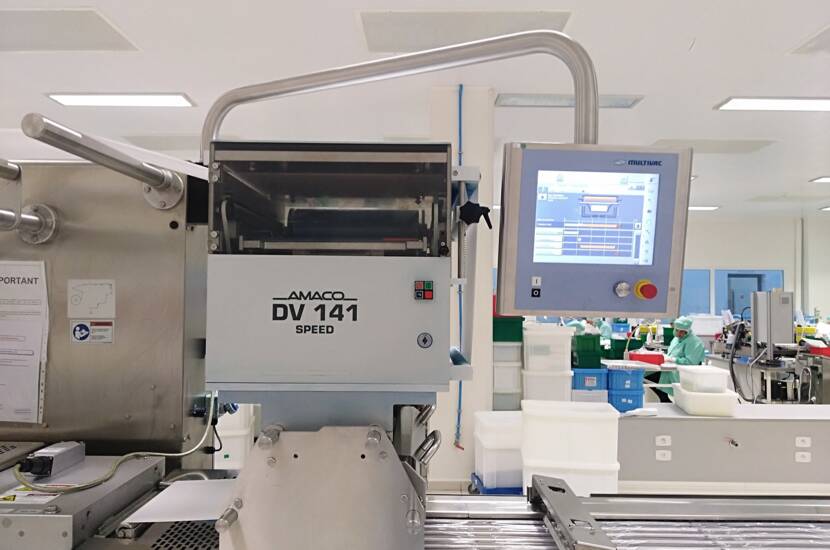

  • Desgined for integration with horizontal form, fill & seal or blister machines.

  • Highest quality full surface printing of fixed information and variable production related data

  • Up to 28 cycles/min.

The power of proven technology

Key Benefits

  • Highest quality single color printing

  • Proven in multiple shift operations for decades

  • Highly economical alternative to pre-printed substrate with a fast return on investment & payback

  • Easy handling and minimal maintenance

  • Minimal air & power consumption lowest running cost

  • High cycle speeds & minimized setup times

  • Integrated print alignment for accurate fitting at sealing station

  • Tool-free colour and print plate change

  • PUA | PU | MAGNETIC print plates for quick changeover

  • Customized rubber rib section for variable data printing

  • Pure efficiency with Closed Ink Unit or Multiple Ink Supply Systems [AFS/CIU] optional

DV332_Weißraum
Technical Data
Print Area max. [in web direction] 200 mm
Print Area max. [across the web] 300 mm
Print Speed max. up to 20 prints / min.
Air Consumption max. 10 L / print
Top Web max. 340 mm



Print Area max. [in web direction] 300 mm
Print Area max. [across the web] 400 mm
Print Speed max. up to 18 prints / min.
Air Consumption max. 19 L / print
Top Web max. 440 mm



Print Area max. [in web direction] 300 mm
Print Area max. [across the web] 400 mm
Print Speed max. up to 24 prints / min.
Air Consumption max. 3,7 L / print
Top Web max. 440 mm



Print Area max. [in web direction] 350 mm
Print Area max. [across the web] 400 mm
Print Speed max. up to 28 prints / min.
Air Consumption max. 3,7 L / print
Top Web max. 440 mm



Print Area max. [in web direction] 300 mm
Print Area max. [across the web] 600 mm
Print Speed max. up to 18 prints / min.
Air Consumption max. 5,50 L / print
Top Web max. 640 mm



Print Area max. [in web direction] 450 mm
Print Area max. [across the web] 400 mm
Print Speed max. up to 20 prints / min.
Air Consumption max. 3,70 L / print
Top Web max. 440 mm



Print Area max. [in web direction] 450 mm
Print Area max. [across the web] 500 mm
Print Speed max. up to 20 prints / min.
Air Consumption max. 5,50 L / print
Top Web max. 540 mm



Industries & Applications

Industries:

  • Medical Device Industry

  • Pharmaceutical Industry

  • Other Industries



Applications:

  • Medical Paper

  • Tyvek

  • Film

  • Foils

Flexographic Printer

Consumables

Cliché

Photopolymer print plate with highest possible resolution.

learn more
Print Plates

The solution developed with many years of know-how is robust, durable and available for all AMACO Flexographic Printers.

learn more
Ink & Solvent

A wide range of suitable inks and solvent for all our printing technologies.

learn more
Rubber Type

 A big assortment of standard and customized rubber types to print variable data with the AMACO Ink Coder or the AMACO Flexographic Printer.

learn more
