D-Motion_freigestellt

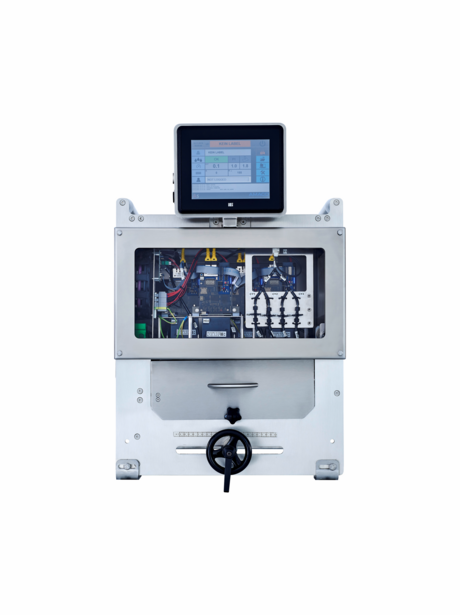

Digital Piezo DOD Inkjet

D-MOTION

Single color or two color high quality printing for short advances.

Contact us
Key Features

The AMACO Piezo DOD Inkjet Printer of the D-MOTION series is the all-in-one solution for medium-sized UDI compliant in-line printing using an integrated vision control system [optional].



  • Full surface in-line printing directly on the top web material

  • Printing during stand still of the packaging machine | 4 moving print heads running accross the top web

  • Single color or two color high quality print

  • UDI compliant printing [GS1 | HIBC]

  • Connectivity [Ethernet | USB | ERP]

  • Adjustable ink output | Grey scales and drop size

  • Innovative touchscreen for easy handling & user guidance

  • Space saving stainless steel construction

  • Vision Control System [optional]
Go ahead with digital transformation

Key Benefits

  • High resolution printing

  • Low running costs | Ink amount equals printed information

  • Minimum maintenance

  • No noise pollution during operating

  • Easy installation and smooth synchronisation with the packaging line

D-MOTION
Technical Data | Single Color
Print Area max. [in web direction] 500 mm
Print Area max. [across the web] 71 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 500 mm
Print Area max. [across the web] 142 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 500 mm
Print Area max. [across the web] 213 mm
Print Resolution max.
360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 500 mm
Print Area max. [across the web] 284 mm
Print Resolution max.
360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Technical Data | Two Color
Print Area max. [in web direction] 500 mm
Print Area max. [across the web] 71 mm
Print Resolution max.
360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 500 mm
Print Area max. [across the web] 142 mm
Print Resolution max.
360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 500 mm
Print Area max. [across the web] 213 mm
Print Resolution max.
360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 500mm
Print Area max. [across the web] 284 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Industries & Applications

Industries:

  • Medical Device Industry

  • Pharmaceutical Industry



Applications:

  • Medical Paper

  • Tyvek
