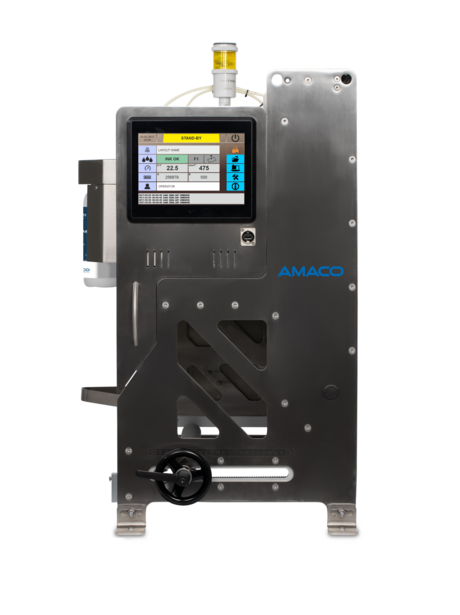

D-FLEX20 MRP04021_Freigestellt
Digital Piezo DOD Inkjet

D-FLEX

Single color or two color in-line printing in high resolution quality.

Contact us
Key Features

The AMACO Piezo DOD Inkjet Printer of the D-FLEX series is the all-in-one solution for two color full surface UDI compliant in-line printing using an integrated vision control system [optional].



  • Full surface in-line printing directly on the top web material

  • Printing during stand still of the packaging machine up to 500 mm / sec.

  • Single color or two color high quality print

  • UDI compliant printing [GS1 | HIBC]

  • Connectivity [Ethernet | USB | ERP]

  • Left or right version

  • Ink output adjustable [grey scales and drop size]

  • Innovative touchscreen for easy handling & user guidance

  • Space saving stainless steel construction

  • Vision Control System [optional]

Single Color or Two Color high quality print

Key Benefits

  • High resolution printing

  • Low running costs | Ink amount equals printed information

  • Ink refill process without downtime

  • Minimum maintenance

  • Minimum power & air consumption

  • No noise pollution during operation

  • Easy installation and smooth synchronisation with the packaging line

D-FLEX 20 Digital Piezo DOD Inkjet
Technical Data | Single Color
Print Area max. [in web direction] 500 mm
Print Area max. [across the the web] 284 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 500 mm
Print Area max. [across the the web] 426 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI
Print Speed max.
Up to 500 mm / sec.



Print Area max. [in web direction] 500 mm
Print Area max. [across the the web] 568 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI

Print Speed max.

Up to 500 mm / sec.



Technical Data | Two Color
Print Area max. [in web direction] 400 mm
Print Area max. [across the the web] 284 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 400 mm
Print Area max. [across the the web] 355 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Print Area max. [in web direction] 400 mm
Print Area max. [across the the web] 426 mm
Print Resolution max. 360 x 360 DPI | 360 x 720 DPI
Print Speed max. Up to 500 mm / sec.



Industries & Applications

Industries:

  • Medical Device Industry

  • Pharmaceutical Industry



Applications:

  • Medical Paper

  • Tyvek

Digital Piezo DOD Inkjet

Consumables

Ink & Solvent

A wide range of suitable inks and solvent for all our printing technologies.
