HP Coder

Fast, reliable and maintenance free.

Key Features

The AMACO HP Coders are the smart solution for small area printing requirements for variable data. Install our HP Coders to print variable data, UDI codes, 2D and QR codes, barcodes, LOT numbers etc. with high speed, reliability and maintenance free.

For primary and secondary coding applications
Stainless steel control device IP65
Full color graphic display [14,4 cm | 5.7 inch]
Support of True Type Fonts [TTF]
Graphical user guidance
Configuration for up to 4 printheads
Locking lever for the cartridge with positioning monitoring
Checking device status & automatic ink level monitoring

Smart solutions that meet your needs

Key Benefits

Trusted and mature HP [TIJ] technology
Easy to change HP ink cartridge, clean and mess free
Suitable for a wide range of porous and non-porous packaging materials
Fast, consistent and trouble free printing
Economical, precise and excellent printing quality
Low set-up cost
Simple cascading of print heads
Intuitive use and easy to learn [graphical & multilingual user guidance]
Maintenance free
New print head with every cartridge change
Comprehensive range of inks & accessories
Lowest ink consumption due to scalable font size & rasterization

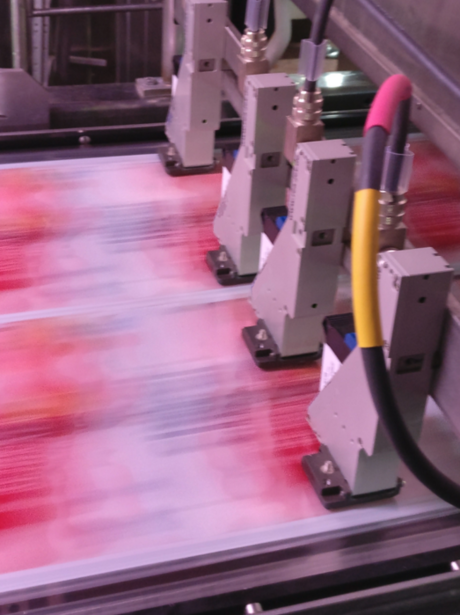

Project Pictures & Videos

Technical Data

Print Heads	2
Print Length Max.	25,40 mm
Print Resolution Max.	up to 600 DPI
Digital Inputs [24 V DC]	6
Digital Outputs [24 V DC]	4
Housing Protection Class [IP]	65
Webserver	Yes
VNC	Yes

Print Heads	4
Print Length Max.	50,80 mm
Print Resolution Max.	up to 600 DPI
Digital Inputs [24 V DC]	12
Digital Outputs [24 V DC]	8
Housing Protection Class [IP]	65
Webserver	Yes
VNC	Yes

Industries & Applications

Industries:

Medical Device Industry
Pharmaceutical Industry
Food Industry
Other Industries

Applications:

Medical Paper
Tyvek
Film
Foils
